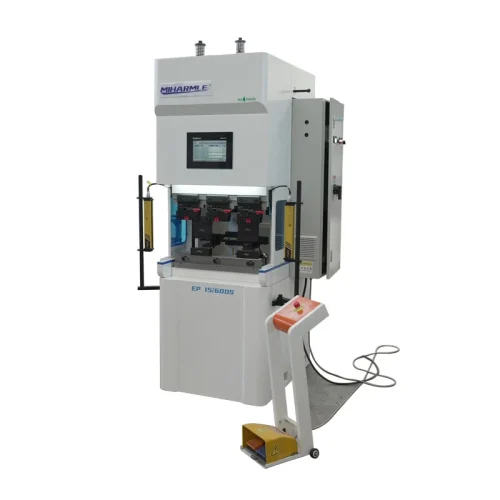

pure electric press brake description
Unlike hydraulic bending machines that use cylinders to drive slides, pure electric bending machines use lead screws to drive cylinders. They are designed specifically for precision sheet metal parts and are widely used in copper busbar bending, arc bending, and small workpiece bending.
Advantages: 100% electric drive, high-speed and high-precision operation, energy-efficient and eco-friendly, requires no hydraulic oil maintenance, and suitable for high-volume production.
Control system options: DA53T, INOVANCE, DE15
Processing capacity: 10 tons – 80 tons
Get A QuoteAdvantages of Mini Electric Press Brake
-
High-efficiency production: Built-in complete database of workpieces, molds, and materials, allowing for quick order switching and efficient, orderly production.
-
Supports multiple bending operations: Built-in professional bending program algorithms, supporting multiple bending operations and adapting to diverse and complex sheet metal processing.
-
Stable bending accuracy: Supports precise synchronous control of Y1/Y2/X/R four axes, resulting in more accurate bending with an error of ±0.001mm.
-
High processing capacity: 10 tons – 80 tons, recommended for medium to high precision bending operations.
- Compact design: This mini electric press brake is designed for small workshops and has a small footprint, allowing operators to achieve precise operation in limited space.
- Energy-saving and environmentally friendly: It adopts an efficient servo motor drive, which is purely electric and does not burn oil. Compared with hydraulic systems, energy consumption is greatly reduced.
- Easy to operate: The device has a user-friendly interface. It usually features a 10.1-inch high-resolution color display. The operation menu is clear and concise. Parameter settings are intuitive and easy to grasp.
- Low maintenance cost: The fully electric press brake has a simple design. It has fewer weak parts than the hydraulic press brake. This means it doesn’t have hydraulic pipelines, oil pumps, or valve groups.
- Wide range of applications: By adjusting parameters and molds, it can be suitable for bending plates of various materials (such as stainless steel, carbon steel, and aluminum alloy) and different thicknesses (from thin plates to medium and thick plates).
Features of DA53T System
The DA53T control system is a high-end electric bending machine accessory, featuring an intuitive touch interface, clear program management, and multi-step bending technology support.
- 100% pure electric drive
- Machining capacity from 10 to 80 tons
- DA53T system, supports 2D view
- Supports up to 4+1 axis control
- Deflection compensation control
- Crowning control
- Tool / material / product library
- Servo and frequency inverter control
- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves
- Tandemlink (option)
- USB memory stick interfacing
- Profile-T offline software
-
High-speed and precise operation
-
Suitable for the production of cabinets, covers, brackets, housings, and precision parts
-
Ideal choice for CNC solutions in European countries
Download Product Catalog Right Now!
CALL: +86 18055363998
PERFECT AND FAST BENDING
Technical Specifications
| ITEM | UNIT | Single cylinder | Dual cylinder | |
|---|---|---|---|---|
| EP12/600 | EP18/800 | EP30/1250S | ||
| Nomial pressure | KN | 120 | 180 | 300 |
| Workbench | mm | 600 | 800 | 1250 |
| Column spacing | mm | 520 | 720 | 1160 |
| Throat depth | mm | 200 | 250 | 300 |
| Slide stroke | mm | 120 | 120 | 150 |
| Max.opening height | mm | 420 | 450 | 450 |
| Rear material blocking stroke | mm | 200 | 350 | 500 |
| Max.speed of slider operation | mm/s | 200 | 200 | 200 |
| Main motor power | KW | 5.5*1 | 7.5*1 | 7.0*2 |
| Number of axis | Axis | 3(Y,X,R) | 3(Y,X,R) | 4(Y1,Y2,X,R) |
| Size(L*W*H) | mm | 1000*970*21 | 1000*970*210 | 1400*1200*2200 |
| Weight | Kg | 1150 | 1800 | 2350 |
Product Accessories
The oil supply is stable and even, saving manpower, effectively reducing wear and tear, and lowering operating noise.
High energy efficiency, saves electricity and reduces consumption, highly adaptable, durable with few failures, and long service life.
Multiple circuit protections ensure stable and safe operation; compatible with DA53T CNC systems.
Stable dimensional control significantly improves workpiece consistency and reduces scrap rate.
Rapid positioning with minimal repeatability error, combined with a CNC system to improve bending efficiency.
DA53T touch controller with intuitive interface, multi-step bending program storage, precise axis control, greatly improving bending accuracy.
Quick clamping device enables tool-free fast mold change, stable positioning, greatly saving setup time and boosting production efficiency.
42CrMo material is wear-resistant and deformation-resistant, with uniform precision, and is suitable for bending of various specifications.
CNC Control System Types
Customize The Controller For Your Mini Electric Press Brake
DA53T• “HOT-KEY^ TOUCH NAVIGATION
• 10.1 ° HIGH RESOLUTION COLOUR TFT
• UP TO 4 AXES (Y1,Y2 + 2 AUX. AXES)
• CROWNING CONTROL
• TOOL / MATERIAL / PRODUCT LIBRARY
• SERVO AND FREQUENCY INVERTER CONTROL
• ADVANCED Y-AXIS CONTROL ALGORITHMS FOR CLOSED- LOOP AS WELL AS OPEN-LOOP VALVES.
• TANDEMLINK (OPTION)
• USB MEMORY STICK INTERFACING
• PROFILE-T OFFLINE SOFTWARE
DA58T• 2D GRAPHICAL TOUCH SCREEN PROGRAMMING• 15 ° HIGH RESOLUTION COLOUR TFT• BEND SEQUENCE CALCULATION• CROWNING CONTROL• SERVO AND FREQUENCY INVERTER CONTROL• ADVANCED Y-AXIS CONTROL ALGORITHMS FOR CLOSED LOOP ASWELL AS OPEN-LOOP VALVES.• USB, PERIPHERAL INTERFACING• PROFILE-T OFFLINE SOFTWARE
Click me!
DA66T• 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE• 3D VISUALISATION IN SIMULATION AND PRODUCTION• 17° HIGH RESOLUTION COLOUR TFT• FULL WINDOWS APPLICATION SUITE• DELEM MODUSYS COMPATIBILITY (MODULE SCALABILITY AND ADAPTIVITY)USB, PERIPHERAL INTERFACING• USER SPECIFIC APPLICATION SUPPORT WITHIN THE CONTROLLERS MULTITASKING ENVIRONMENT• SENSOR BENDING & CORRECTION INTERFACE• PROFILE-TL OFFLINE SOFTWARE
Click me!
DA69T
E21
TP10S
DA53T
DA58T
DA66T
DA69T
E21
TP10S
Customer Reviews
Why Choose Us?
- Direct from the manufacturer: Own standardized production workshop; customization supported.
- Professional R&D team: Years of experience in servo bending equipment, compatible with mainstream systems such as DA53T and Huichuan.
- Complete certifications: CE, ISO9001 quality standards, whole machine inspection report, and other certifications.
- Long-term warranty: Two-year standard warranty for the whole machine.
- Localized fast service: Installation, commissioning, and free operation training.
- One-stop support: Matching bending dies, quick clamps, and linear encoders supplied simultaneously.
Contact us Now!
GET SOCIAL
+86 18055363998
ADDRESS
Qingshui Industrial Park, Qingshui Street, Wuhu Disrtict, China(Anhui)
news
Electric vs Hybrid Press Brakes: 9 Primary Distinctions
Press brakes are widely used across many industries. They help bend large, thicker, and stronger...
Join Us at the 140th Canton Fair
At the 140th Canton Fair, we are showcasing two of our core products: the CNC...
Oct
DELEM DA69S Controller Guide for European Press Brake Buyers
If you are buying a high-end CNC press brake, the DELEM DA69S deserves attention.It combines...
Sep
Servo-Hybrid vs Fully Electric Press Brakes: Energy Savings
A servo-hybrid press brake combines servo-driven pumps with hydraulic bending force, reducing unnecessary energy consumption...
Sep
How to Choose a Plate Rolling Machine: European Buyer’s Guide
Choosing a Plate Rolling Machine Is More Than Comparing Thickness and Length When European fabricators...
Sep
Tandem Press Brake Assembly & Crowning Calibration Guide
Why Is Precision Assembly Critical for a Large Tandem Press Brake? A Tandem Press Brake...
Sep
Tandem Press Brakes for European Infrastructure & Wind Tower Manufacturing
Why Heavy-Duty Fabrication Requires a Different Bending Solution European infrastructure and renewable-energy projects increasingly involve...
Sep
Delem DA-69S vs Cybelec ModEva Premium for Tandem Press Brakes
Why Does the CNC Controller Matter in Tandem Bending? A Tandem Press Brake combines two...
Sep
Applicable Industries
Pure electric bending machines are used in new energy, electronic medical, and precision instruments to bend thin copper busbars, arcs, small workpieces, stainless steel, aluminum plates, carbon steel, etc., with high precision and no oil stains.
Sheet metal processing
The pure electric bending machine has high servo positioning accuracy, no oil contamination on the workpiece, fast bending speed and stable angle, and is suitable for stainless steel and aluminum sheet, meeting the needs of clean and high-standard batch processing of precision sheet metal.
New energy solution
Oil-free design keeps the new energy shell clean. High-precision servo bending fits aluminum & copper busbar, energy-saving and quiet for clean workshop production.
Electronic medical solution
No oil leakage to avoid workpiece contamination. High-precision bending suits clean electronic and medical equipment production.
Processing solution
Full servo electric press brake, high precision, oil-free, energy-saving, and low noise. Easy maintenance, suitable for mass sheet metal processing of various materials.
