Advantages
- Equipped with a high-brightness 24-inch LCD screen
- Supports 2D and 3D touchscreen programming modes
- Features 3D visual editing, including 3D machine visualization
- Equipped with USB peripheral interfaces
- Intelligent control with interfaces for sensor-based bending and correction
- Includes Profile-S3D offline software
- Utilizes industrial PCT touchscreen control

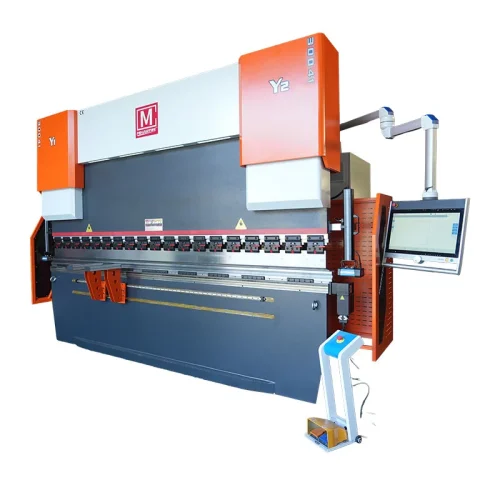

Main Feature of DA69S CNC Press Brake Machine
Rigid Frame: The DA69S CNC press brake features a reinforced, rigid frame that provides stable support for heavy-duty processing and ensures long-lasting durability.
Closed-Loop System: Ram movement is controlled via a closed-loop system utilizing hydraulic cylinders, a deflection compensation system, and proportional valves, ensuring consistent bending results with an accuracy of ±0.01mm.
Precision Backgauge: Equipped with high-precision ball screws and guide rails from Hiwin (Taiwan), the backgauge ensures bending accuracy.
Wide Range of Applications: Suitable for sectors such as aerospace, automotive manufacturing, and metalworking, offering a long service life.
Multi-Axis Control: Supports optional Y1/Y2, X/R, and Z1/Z2 axes; additionally, automatic compensation ensures operational accuracy and consistency.
300-Ton 4-Meter Electro-Hydraulic CNC Press Brake Technical Parameter
|
NO. |
Name |
Unit |
HTS-30040 |
||
|
1. |
Nominal force |
KN |
3000 |
||
|
2. |
Worktable length |
mm |
4000 |
||
|
3. |
Between Columns |
mm |
3100 |
||
|
4. |
Equipping die height |
mm |
530 |
||
|
5. |
Slider Travel |
mm |
250 |
||
|
6. |
Throat depth |
mm |
400 |
||
|
7. |
Down Speed |
mm/min |
120 |
||
|
8. |
Pressing Speed |
mm/min |
10 |
||
|
9. |
Return Speed |
mm/min |
100 |
||
|
10. |
Main power |
KW |
22 |
||
|
11. |
X axis stroke |
mm |
500 |
||
|
12. |
X axis speed |
mm/s |
250 |
||
|
13. |
R axis stroke |
mm |
200 |
||
|
14. |
R axis speed |
mm/s |
60 |
||
|
15. |
Control axes 8+1 Axis |
|
(X1,X2,Y1,Y2,Z1,Z2,R1,R2+V) |
||
|
16. |
Size |
L |
mm |
4500 |
|
|
W |
mm |
2250 |
|||
|
H |
mm |
3300 |
|||
Product Acessories
Main servo motor
Utilizing a premium brand main servo motor reduces energy consumption by 40% and can boost slide efficiency by up to 20%. Low operating noise ensures a comfortable working environment.
Air-cooled system
This custom-made air cooler is designed to effectively maintain stable hydraulic oil temperatures and reduce the risk of machine failure.
Get A Quote
Light Curtain
The light curtain system provides real-time protection for operators. It ensures safety and enables safe, efficient operations.
Get A Quote
8+1 Axis Backgauge System
Equipped with an 8+1 axis precision backgauge, it enables the easy processing of complex workpieces while maintaining high precision.
Get A Quote
Follow-up Material Support
The front material support features a dual-support system that assists in moving the workpiece, making the process simple and convenient.
Get A Quote
Crowning System
The deflection compensation system effectively minimizes workpiece deformation, ensures consistent bending angles, and reduces setup time for operators.
Get A Quote
Press Brake Punches & Dies
Miharmle offers high-quality punches that determine the bending angle and radius; for the bottom die, options include single-V, double-V, multi-V, and four-V configurations.
Get A Quote
Schneider Electric Components
Schneider Electric components from France offer high safety, providing reliable control and circuit protection for greater peace of mind.
Get A Quote
Quick Clamping System
Compatible with AMADA single-sided, double-sided, and pneumatic quick-clamping systems, as well as optional WILA clamps, this reduces tool changeover time and boosts production efficiency.
Get A QuoteOur Factory
