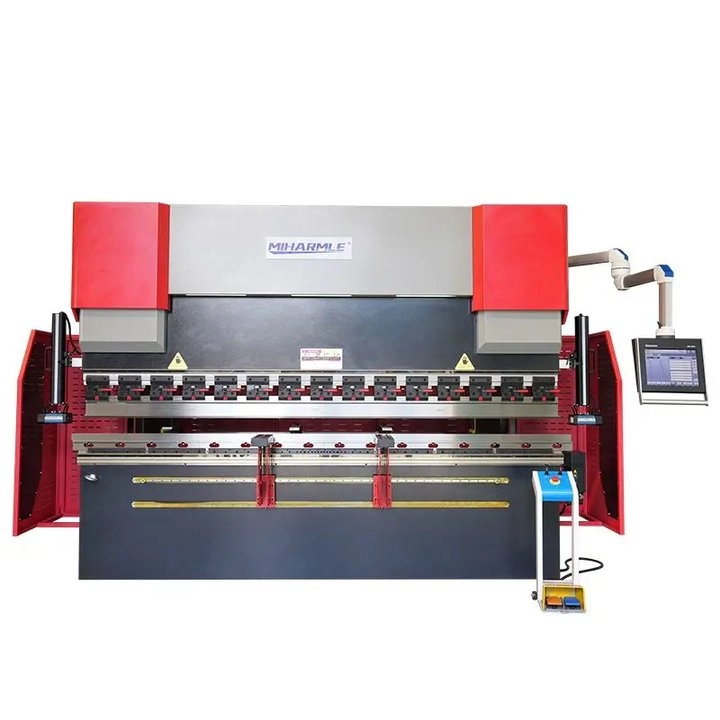

Main Features
- Accuracy and repeatability: our press brake can perform bending operations with extreme accuracy, ensuring that each workpiece conforms to strict specifications and reducing reject rates.
- Flexibility: the machine is equipped with a multi-function tool head, can adapt to different shapes and sizes of the workpiece, thus providing greater production flexibility.
- User-friendly: An intuitive CNC interface makes the operation simple, and the operator can easily set up and monitor the bending process.
- Efficient production: fast working speed and automation features to maximize production efficiency, saving time and labor costs.
- Durability: our press brake is made of high quality materials to ensure long and stable operation and reduce maintenance costs.
Download DA58T Hydraulic Press Brake Machine Catalog Right Now!
CALL: +86 182 5530 6406
PERFECT AND FAST BENDING
Machine Specifications
| Technical parameter | Unit | Flexible bending center model | |
| Feeding mode | / | Suction cup type | Press type panel bender |
| Bending Length | mm | 1400 | 2000 |
| Max bending height | mm | 170 | 170 |
| Max bending height | mm | 4 | 4 |
| Max forning size of four sides | mm | 400*250 | 300*300 |
| Max forming size of one side | mm | 160 | 160 |
| Max arc radus | mm | 1.2 | 1.2 |
| Max continuous bending speed | s | 0.2 | 0.25 |
| Bending angle | º | 0-180 | 0-180 |
| Number of control axes | / | 9 | 10 |
| Axis postioning accuracy | mm | 0.01mm | 0.01mm |
| Max feeding speed | m/min | 60 | 120 |
| Average power | kw | 1.5 | 2 |
| Total power | kw | 45 | 55 |
| Bending die | mm | Standard configuration | Standard configuration |
| Equipment size | mm | 3700*3000*2750 | 5790*3100*2300 |
| Equipment weight | T | ||
| Norminal Force | 800 -1600 KN and other |
| Worktable Length | 2500-4000mm and other |
| Throat Depth | 320mm and other |
| Back-Gauge Range | 20-600mm and other |
| Ram Strokes | 120-140mm and other |
| Max Open | 380-470mm and other |
| Power | 7.5-11kw and other |
CNC Control System
Customize The Controller For Your MIHARMLE Press Brake
DA53T
• “HOT-KEY^ TOUCH NAVIGATION
• 10.1 ° HIGH RESOLUTION COLOUR TFT
• UP TO 4 AXES (Y1,Y2 + 2 AUX. AXES)
• CROWNING CONTROL
• TOOL / MATERIAL / PRODUCT LIBRARY
• SERVO AND FREQUENCY INVERTER CONTROL
• ADVANCED Y-AXIS CONTROL ALGORITHMS FOR CLOSED- LOOP AS WELL AS OPEN-LOOP VALVES.
• TANDEMLINK (OPTION)
• USB MEMORY STICK INTERFACING
• PROFILE-T OFFLINE SOFTWARE
DA58T
DA66T
DA69T
E21
TP10S
DA53T
DA58T
DA66T
DA69T
E21
TP10S
