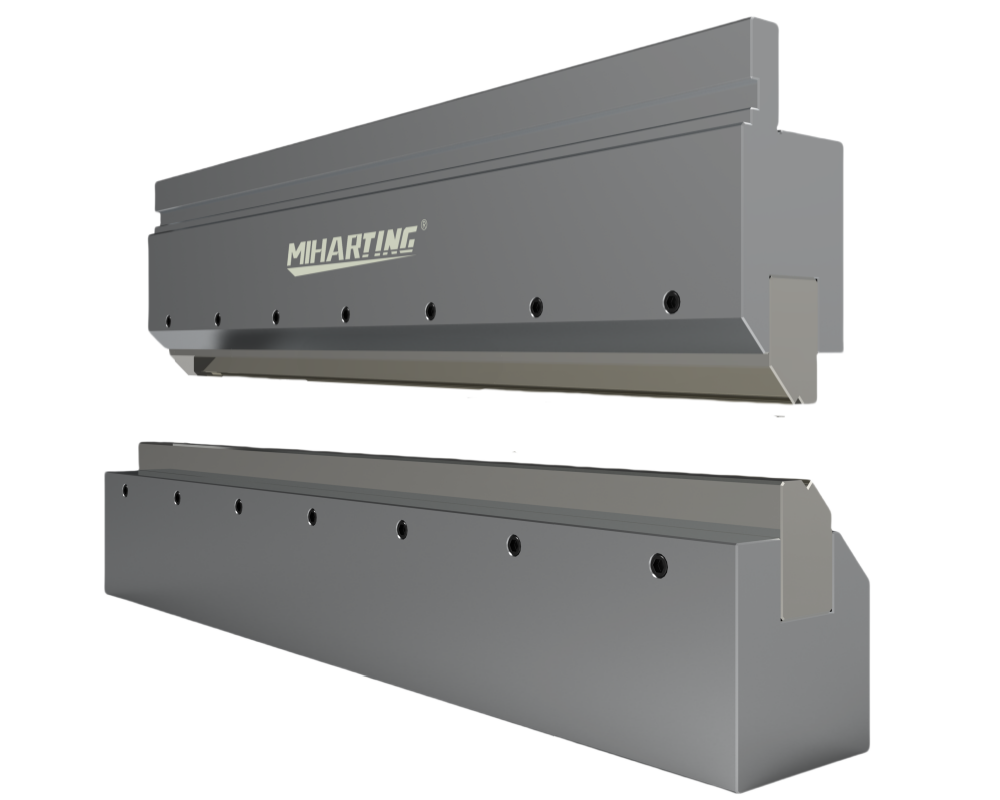

Joggle Tools- Press Brake Offset dies

It can accurately shape structures with different height differences to meet the strict requirements of the product for the step size and tolerance range
Its internal structure often needs to take into account the shaping of multiple molding surfaces and height differences, including different levels of cavity and core design to achieve step effects in different areas of the product.
Targeted design and manufacturing are carried out according to the unique requirements of the step shape, size, distribution, etc. of different products.
High-quality mold materials can ensure that the mold maintains accuracy during long-term use, reduce wear and deformation, and extend the service life of the mold
Efficient mass production can be achieved.

Описание

Описания

The joggle tools is a mold used in the mold manufacturing field to process specific workpieces to form a mold with a certain height difference structure on the workpiece. Its working principle is based on stamping, injection molding and other processing technologies. Through the closing action of the upper and lower molds, the specific structure designed inside the mold is used to force the material to undergo plastic deformation or flow filling according to the predetermined shape and size, thereby accurately shaping the required step-down feature on the workpiece.

Ключевые атрибуты

Атрибуты, характерные для конкретной отрасли

Режим формирования

Joggle tools

Другие атрибуты

Место происхождения	Jiangsu, China
Название бренда	МИХАРТИНГ
Номер модели	На заказ
Материал изделия	Сталь
Продукт	Оснастка для листогибочных прессов
Встроенная машина	Листогибочный станок
Дополнительный материал	42CrMo/55SiCr/GCr15
Дополнительная твердость	45~52HRC
Возможность поставки	800 штук/месяц
Время доставки	20days
Пакет	Деревянный ящик

Технические характеристики

Общая модель гибочного станка	Размеры верхней формы (мм)	Размеры нижней пресс-формы (мм)
40T/2000	2000 * 70 * 18	2000 * 55 * 55
40T/2000	2000 * 80 * 18	2000 * 75 * 75
40T/2000	2000 * 90 * 30	2000 * 55 * 55
40T/2000	2000 * 150 * 26	2000 * 55 * 50
63T/2500	2000 * 85 * 28	2000 * 70 * 70
63T/2500	2500 * 150 * 25	2500 * 65 * 65
63T/2500	2500 * 85 * 28	2500 * 55 * 55
63T/2500	2500 * 100 * 20.5	2500 * 70 * 70
80T/3200	3200 * 80 * 18	3200 * 95 * 95
100T/3200	3200 * 150 * 26	3200 * 95 * 95
100T/3200	3250 * 86 * 28	3250 * 75 * 75
100T/3200	3200 * 72 * 30	3200 * 100 * 100
100T/3200	3250 * 80 * 25	3200 * 95 * 95
160T/3200	3250 * 90 * 56	3250 * 110 * 110
160T/4000	4000 * 80 * 25	3250 * 110 * 110
160T/4000	4000 * 90 * 30	3250 * 110 * 110
160T/4000	4000 * 134 * 34	3250 * 120 * 120
